SIX-PAK AND 6C45 GAIN STAGE CONTRIBUTE TO SUPERIOR MID-BASS

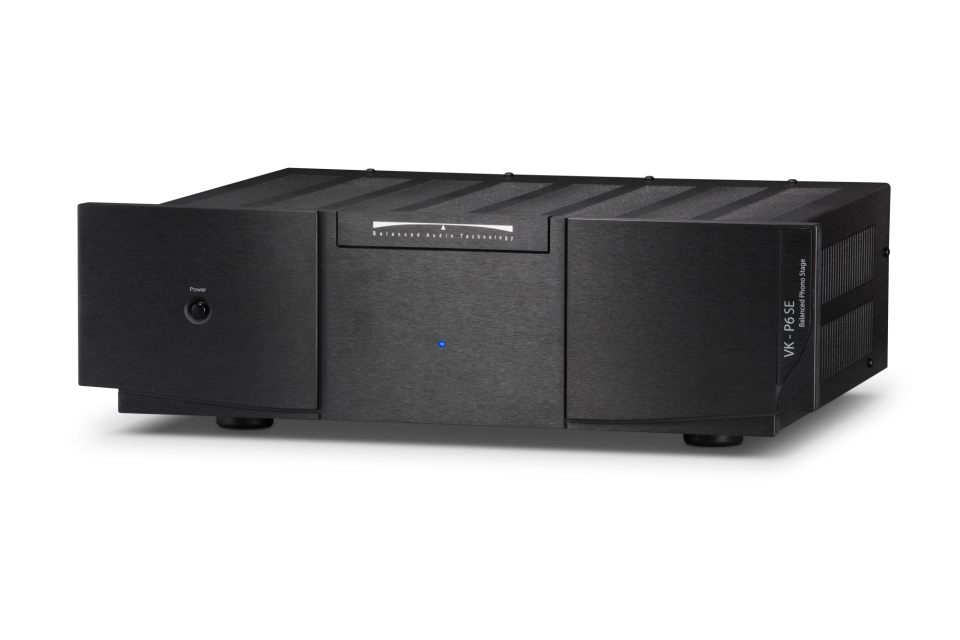

Balanced Audio Technology’s VK-P6SE improves upon the startlingly good VK-P6 by adding a Special Edition gain stage configuration and the same Six-Pak oil-filled output capacitors employed by the reference VK-P12. A beneficiary of trickle-down engineering from BAT’s most-expensive designs, VK-P6SE employs ten tubes in a dual-mono, balanced zero-feedback topology. The Special Edition gain stage employs 6C45 vacuum tubes to achieve improved electrical performance, including more gain and a more open, transparent sound. Dual-mono construction and enormous energy reserves are matched by extensive flexibility in cartridge loading. Your records, your system, and your emotional satisfaction will be greatly rewarded with the VK-P6SE in the chain.
Specifications:
Inputs: 1 pr x RCA
Outputs: 1 pr x XLR
Gain:
Low: 50dB
High: 55dB
Cartridge Loading:
Resistance: Selectable from 100 to 47K plus user setting
Capacitance: Selectable 0 to 1000
Power Consumption: 150VA
Signal-to-Noise:
Low Gain: 71dB
High Gain: 73dB
Tube Complement:
4x 6922
4x6C45
2x 6SN7
Power Supply Energy Storage: 140 joules
Dimensions (WHD): 19″ x 5.75″ x 15.5″
Weight: 37 lbs
